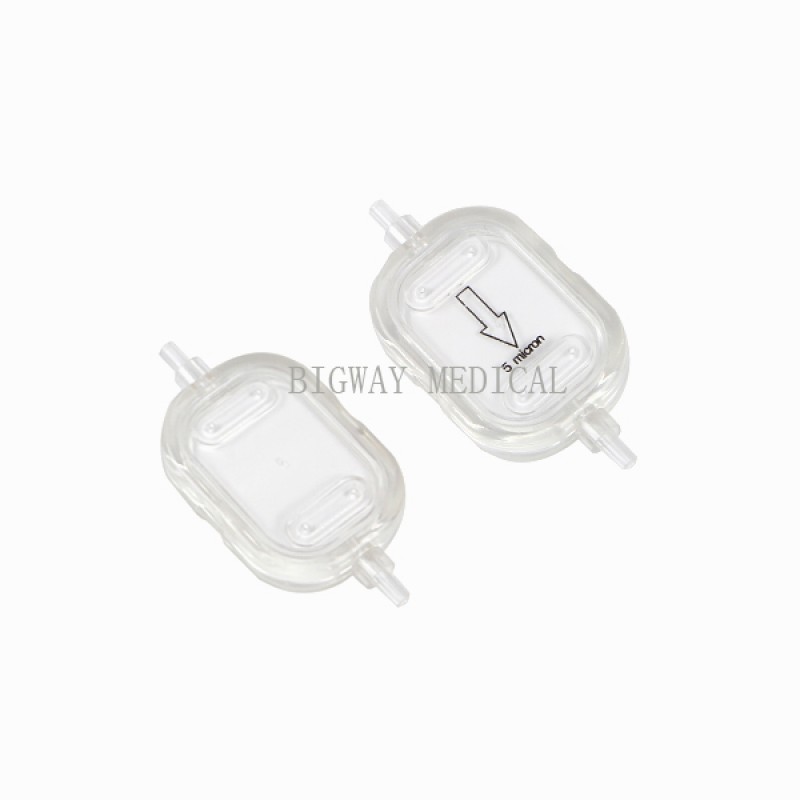

Hospital Medical IV Filter
Description
1.Adopt imported hydrophilic polyether sulphone filter membrane（Polyether sulfone membrane has good hydrophilicity and flux, good chemical stability and inertia, alkalinity, PH stability)With double filter medium, pollutant carrying capacity is strong, hole filter rules, uniform, high filtration precision, won't produce small foreign body falls off,Small adsorption to the drug, drug compatibility.
Double vent design, eliminate the bubbles more fluid in the process of transfusion，Using PTFE polyester block water membrane (diameter less than 0.2 microns), resistance of water at the same time effectively prevent bacteria and particles in the environment into the liquid
product design makes the precise filtration of vibration of drug at the same time to automatic stop liquid , automatic exhaust, Prevent the flow of empty function。
Data
Effective Filtration Area | 10 cm2 |
Filter Media | Hydrophilic PES membrane 0.2 um |
Housing | Clear or Amber modified acrylic |
Vent | 0.02 um supported PTFE |
Minimum Water Bubble Point | 3.7-4.8 bar |
Minimum Water Flow Rate | 32ml/min at 80cm (31.5in.) water head pressure |
Maximum Operating Pressure | 3.2 bar |
Priming Volume | 2.4 mL |
Pyrogenicity | 0.25 EU/mL using the LAL test method |
Sterilization Compatibility | EtO, Gamma (25kGy), Beta, e-beam |
